| MODEL | VESVK 01 | VESVK 02 | VESVK 03 | VESVK 04 |
| Grid Size (mm) | 1000 X 1200 | 1000 X 1500 | 1000 X 3000 | 1000 X 4000 |
| Elecetic Motor (Kw) | 0.75 X 2 | 1.3 X 2 | 1.8 X 2 | 2.2 X 2 |
Overviews

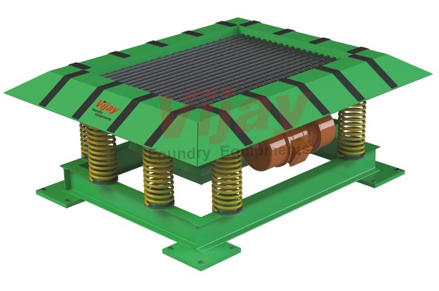

Knockout Machine is designed to separate sand and castings from mould box. The Knockout Machine consists of a top deck, made out of thick steel plate & having net mesh of bars & flats, which together with top rugged fabricated frame floats on heavy duty springs resting on a supporting structure. The floating top frame is made to shake violently either by an Eccentric shaft drive mechanism or by Vibro-motor system. On the basis drive mechanism it has two types of knockout machine.
- Eccentric shaft knockout
- Vibro motor knockout
