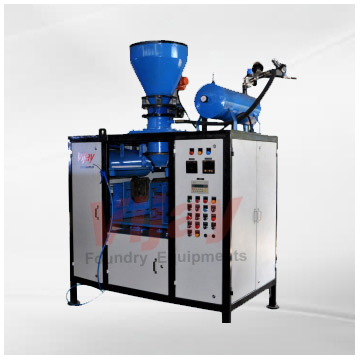

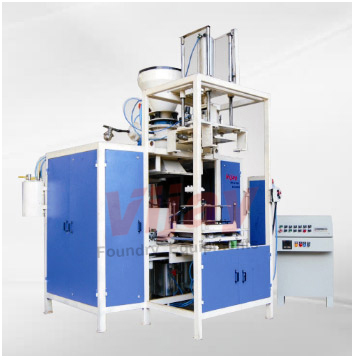

These machines are manufactured for dedicated use with either horizontally or vertically parted core boxes. The machine consists of three parts, such as mechanical part, pneumatic part and electrical part. These machines having automatic operation including sand blowing, gassing and purging cycles and mechanized core removal. Core shooter may use amine or co2 gas as per demands of the customers.
A vaporizer can be heated electrically via the heating elements in the vaporizer chamber. It consist of electrically heated container, coils & Liquid catalyst. Liquid catalyst such as Tri Methyl Amine is vaporized in an electrically heated container. The catalyst vapor is then directed to the Core Machine followed in sequence by heated purge air as programmed by the user through a supplied PLC. We provide Cold Box Core Shooters in various specifications as per the demands of the customers.
MODEL | HORIZONTAL PARTING | VARTICAL PARTING |
Core Capacity (Kg) | 1-10 Kg. | 1-10 Kg. |
Core box size (l*b*h) | 550X550X300 | 550X550X300 |
Cycle time per / core (min.) | 1 | 1 |
Core removing stroke (mm) | 300 | 300 |
Shooting sand air pressure (bar) | 7 | 7 |
Air consumption per/core (Cfm) | 22-30 | 22-30 |
