Overviews

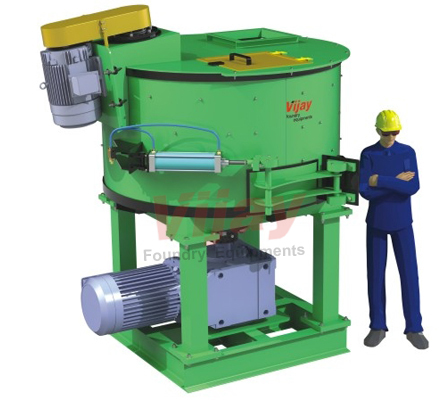

Intensive Mixer are primarily designed for mixing green sand for Foundry application. However it finds various other applications like mixing of Abrasives, Ready-Mix plaster, Battery Paste, Ceramics, Fertilizers, Ore, and Food (with some modification) The mixer is the most important equipment of the green sand preparation System which is used to do proper homogeneous product mix of SAND - BENTONITE - COAL DUST - WATER & FINE DUST.

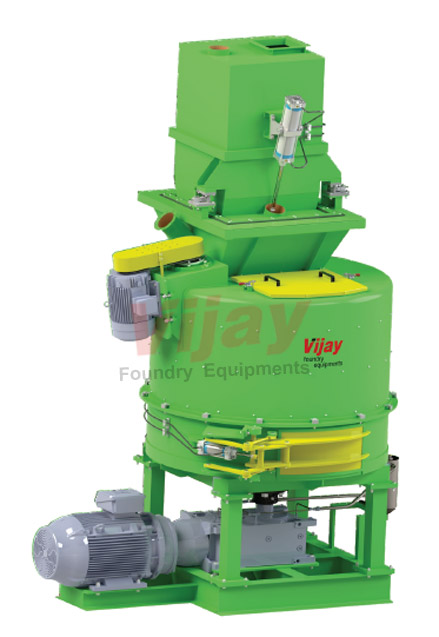

The design fulfills all the requirements for excellent sand quality which is essential for the consistent production of high quality castings. Further they offer technical advantages which are reflected in reduced sand preparation costs. To get accurate product-mix an automatic weigh-batch-hopper with water dozing unit is also available along with the mixer.
Features
• Easy for preventive & routine maintenance.
• Rotor blades fine, Angular & carbide tips brazed.
• Homogeneous moulding sand of consistently high quality.
• Short mixing cycles due to controlled material feed and intensive preparation.
Cycle time - 90/120 seconds for 500 Kg batch.
• High processing efficiency and low bentonite requirement.
• Environmentally-friendly operation, no dust leakage or loss of fines.
• Fully automatic control panel.
• Auto water dozing panel.
• Robust Design.
As being a well reputed company, we are indulged in offering an extensive spectrum of Intensive Sand Mixer. These sand mixers are processed at our manufacturing unit by our dexterous professionals employing high-grade raw metal and innovative machineries. Moreover, in line to utmost client satisfaction, our Intensive Sand Mixers are available in customize options and at reasonable prices.
TYPE |
VE IM 250 |
VE IM 300 |
VE IM 500 |
Batch Capacity |
250 Kgs |
300 Kgs |
500 Kgs |
Diameter of Shell (mm) |
1260 |
1360 |
1600 |
Total Height (mm) |
1700 |
1900 |
2700 |
Drive for Mixing Blade |
10 HP |
15 HP |
50 HP |
Drive for Blender Blade |
5 HP |
7.5 HP |
25 HP |
Optional Accessories
• Skip Charger
• Water addition mechanism
• Auto Cycle Control Panel
