We are Manufacturer, Supplier and Exporter of Industrial Bucket Elevators, Bucket Elevator in Cement Industry, Vertical Bucket Elevators, Bucket Elevators for Foundry and Sand Plants. Our setup is situated in Kolhapur, Maharashtra, India. Majorly we serve customers from African, Gulf countries and all over India.

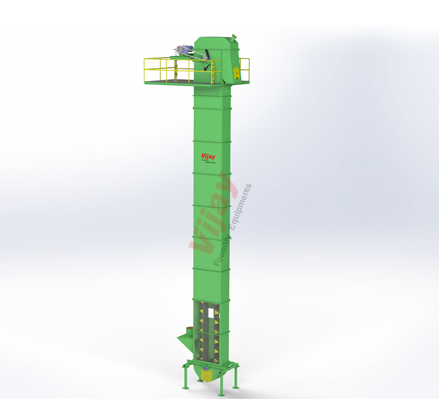

Bucket Elevators
| MODEL | BE-10VE | BE-20VE | BE-40VE |
| Capacity (TPH) | 10 | 20 | 40 |
| Total Height (mm) | As per required | As per required | As per required |
| L X W (mm) | 750 X 375 | 1070 X 555 | 1280 X 645 |
| Drive Motor (HP) | As per height | As per height | As per height |
Overviews
One of the most efficient way to elevate bulk material vertically is with a bucket elevator. A Bucket Elevator consist of
- A series of buckets attached to a belt contain the material
- A belt to carry the buckets and transmit the pull.
- Means to drive the belt
- Accessories for loading the buckets or picking up the material, for receiving the discharged material, for maintaining the belt tension and for enclosing and protecting the elevator.
The buckets are located in a casing or housing to contain the material. Bulk materials are loaded into each bucket as the bucket moves past an inlet point. A bucket elevator can elevate a variety of bulk materials from light to heavy and from fine to large lumps.
Features
- Optimum filling
- Requires less space for the installation
- Little Friction Minimum wear
- Perfect Discharge
- Suitable for high productivity and long plant running time.
