|Batch Capacity (kg)||300||500||800|
|Diameter of shell (mm)||1260||1400||1600|
|Total Height (mm)||2660||2930||3025|
|Drive for Mixing Blade (HP)||20||50||75|

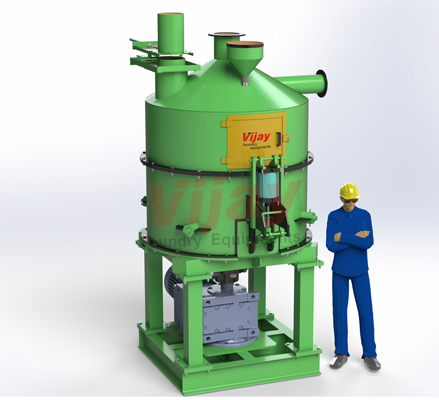

Sand coating mixer is used for mixing and coating of shell sand. Primary function of mixer is to make homogenous mixture of shell sand with Resin and hardeners. Then this sand is used for core making with the help of Shell shooter machine. The mixer's impeller hub is of 's' type blade design which is fitted with Replacable scrappers brazed with carbide tips. Sand coating mixers are available in customised options and at Resonable prices.
